Factory Direct UHMW-PE Roller Chain Guide Low Friction Self Lubricating Conveyor Chain Guide Strip Custom CNC Machining
Product Description

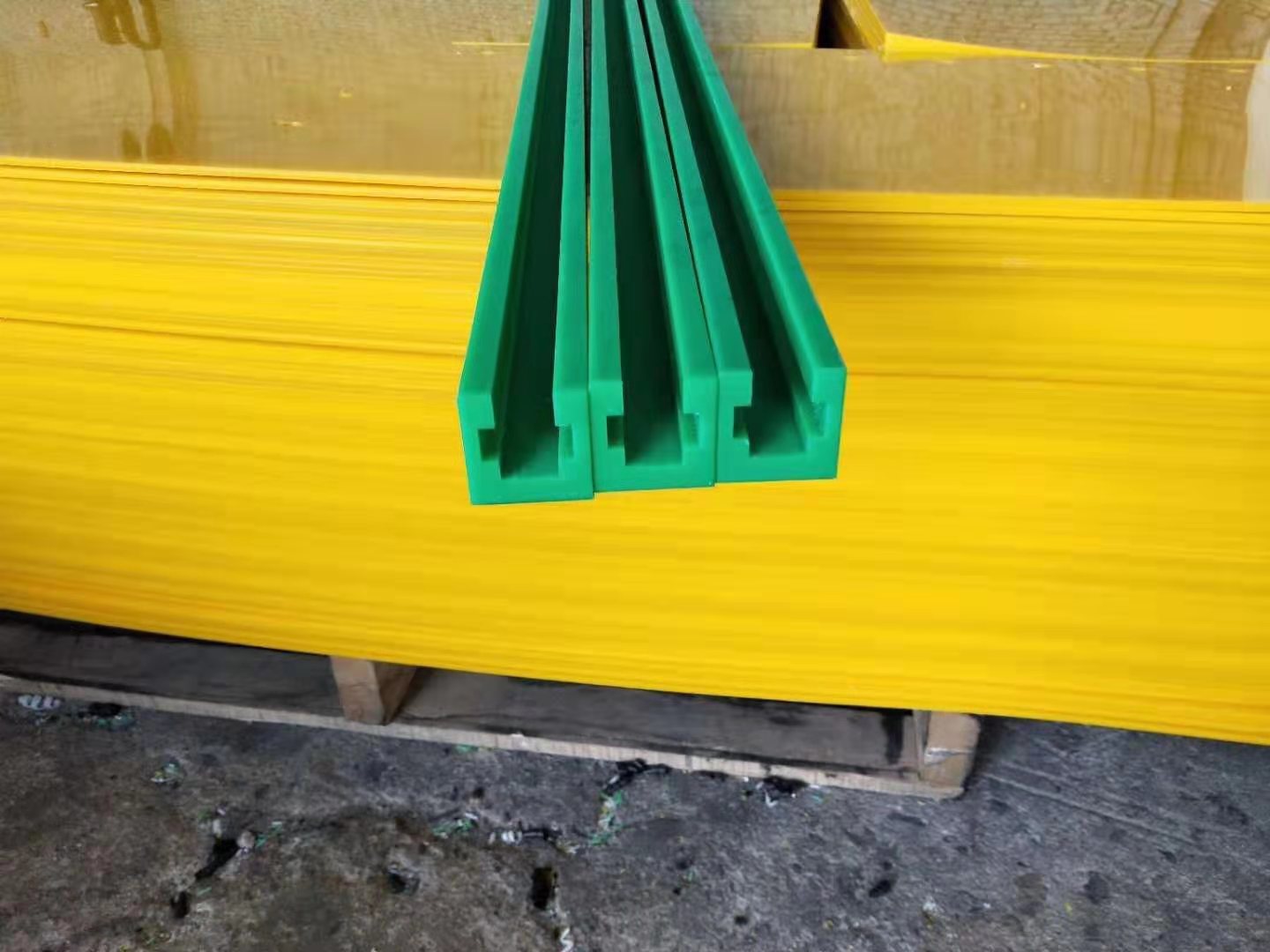

Our UHMWPE chain guide rail is professional sliding wear strip specially designed for roller chain transmission system, widely matched with 06B, 08B, 10A, 12A, 16A and other standard chains, including CKG, CT, CK common slot types.Compared with metal, nylon and HDPE guide rails, UHMWPE material owns unmatched wear resistance and self-lubricating performance, solve the pain points of easy abrasion, loud noise, frequent lubrication and easy chain jumping for traditional guide tracks.We are direct manufacturer with complete CNC processing equipment, accept all drawing customization, small batch trial order supported, stable supply with competitive factory price.

Material Performance 材质性能
Made of high molecular weight UHMWPE, abrasion resistance is 5-10 times of steel, 3-5 times of nylon, greatly reduce chain wear and equipment maintenance costAlibaba.co...
Ultra low friction coefficient ≤0.15, excellent self-lubricating property, no frequent oil filling, energy saving
Super high impact toughness, no brittle crack at -20℃ low temperature, resist heavy impact from chains and materials
Excellent chemical resistance, acid, alkali, salt and organic solvent corrosion free, suitable for chemical, mining harsh environment
Low water absorption (<0.01%), no swelling deformation in wet water environment

Operation Advantage 使用优势

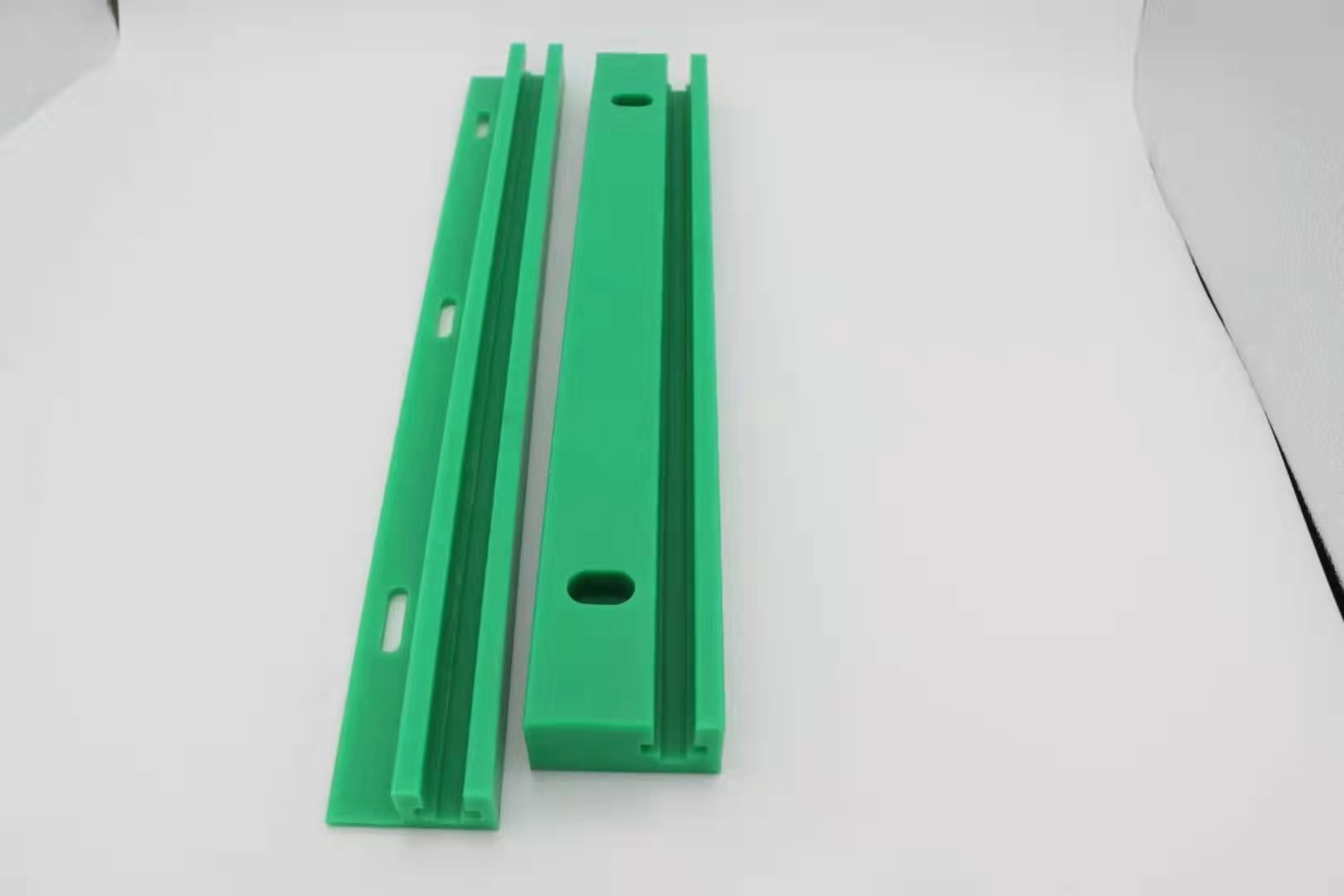

Concave groove design fits roller chain perfectly, effectively prevent chain jumping, offset and derailment during high-speed operation
Silent operation, reduce mechanical vibration noise, improve workshop working environment
Light weight (1/8 weight of steel), easy to transport, install and replace, shorten equipment downtime
Smooth surface without burr, avoid scratch on chain surface, protect conveyor components

Customization & Certification 定制与资质
Support OEM & ODM, custom size, thickness, color (green/black/blue/yellow/white), single/double row groove, curved straight guide rail

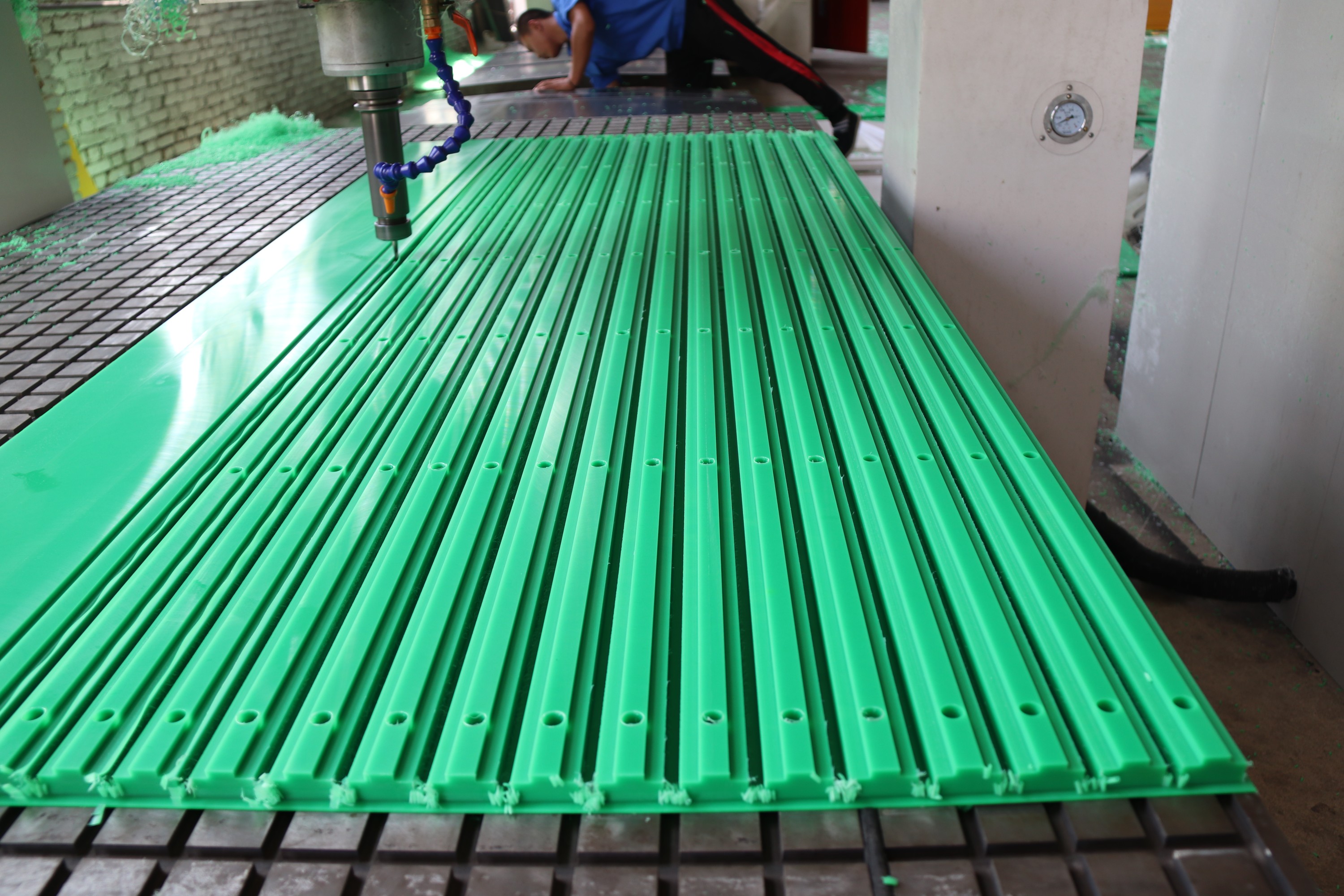

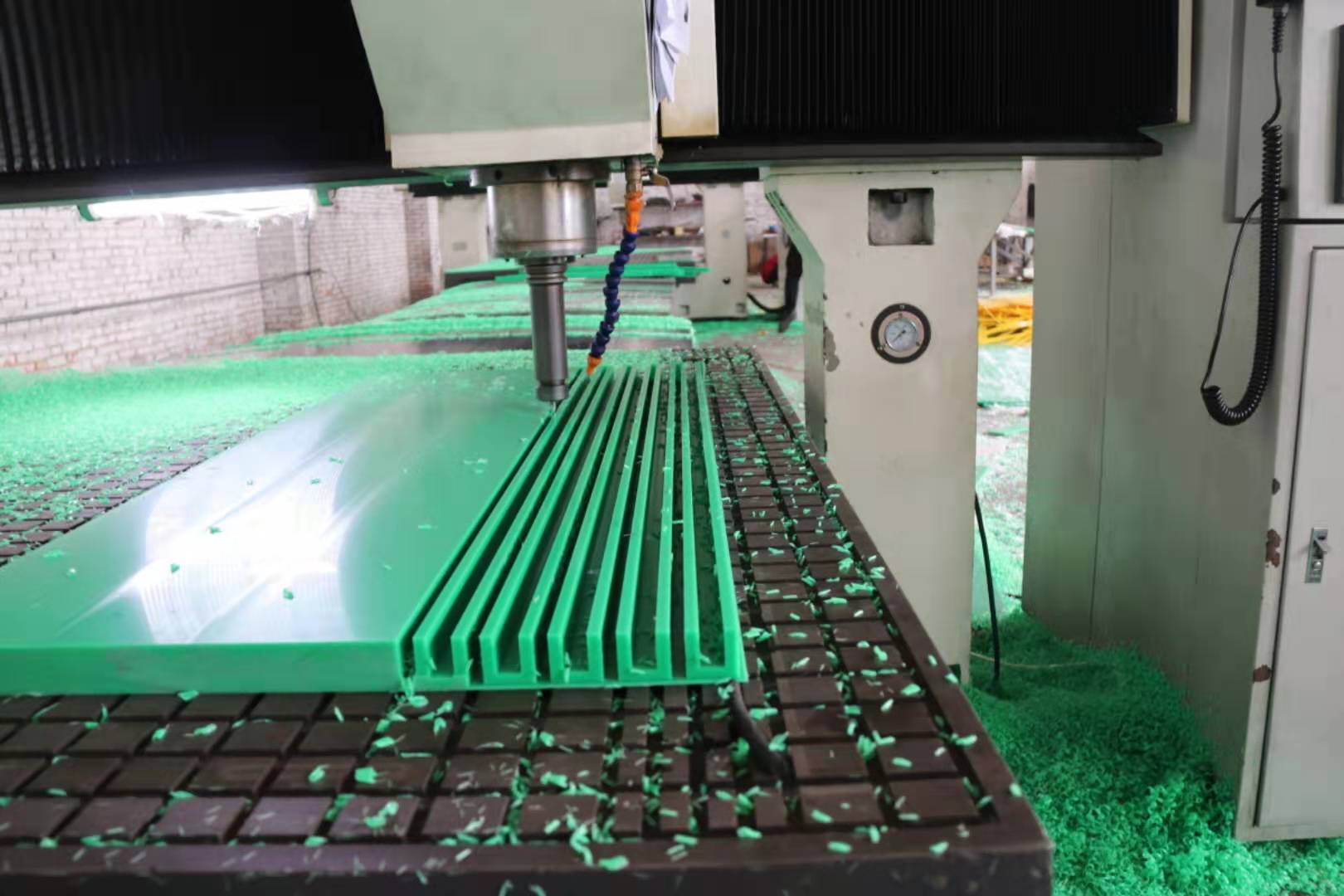

CNC precision machining, drilling, bending, opening mold service according to customer drawings
Optional food grade raw material, pass FDA, REACH, RoHS certification, safe for food, pharmaceutical production line

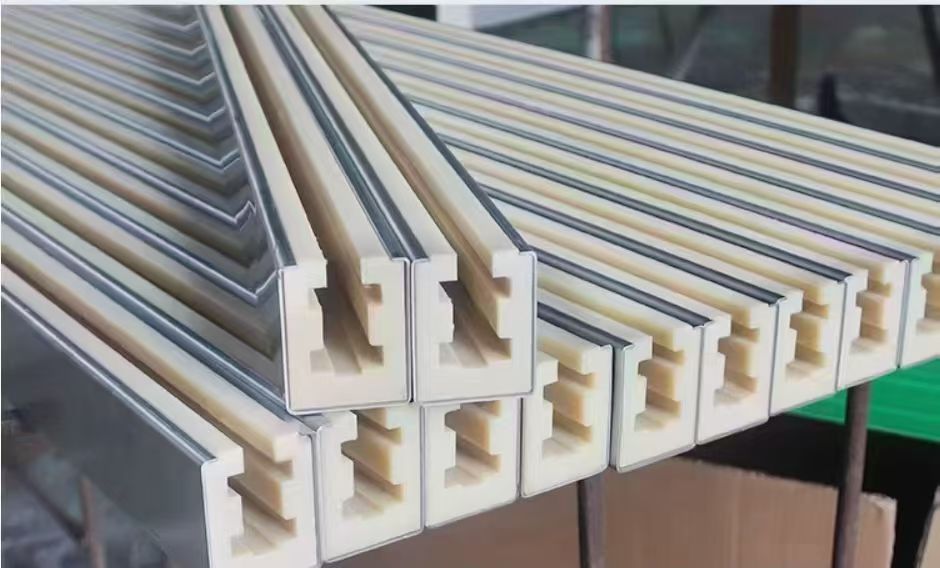

Two styles available: pure UHMWPE plastic guide, galvanized/304 stainless steel wrapped composite guide for heavy high-speed load

Wide Application 适用行业
Roller conveyor, automated assembly line, packaging machinery, food & beverage processing, warehouse logistics, mining equipment, printing machinery, textile machinery, agricultural transmission equipment
